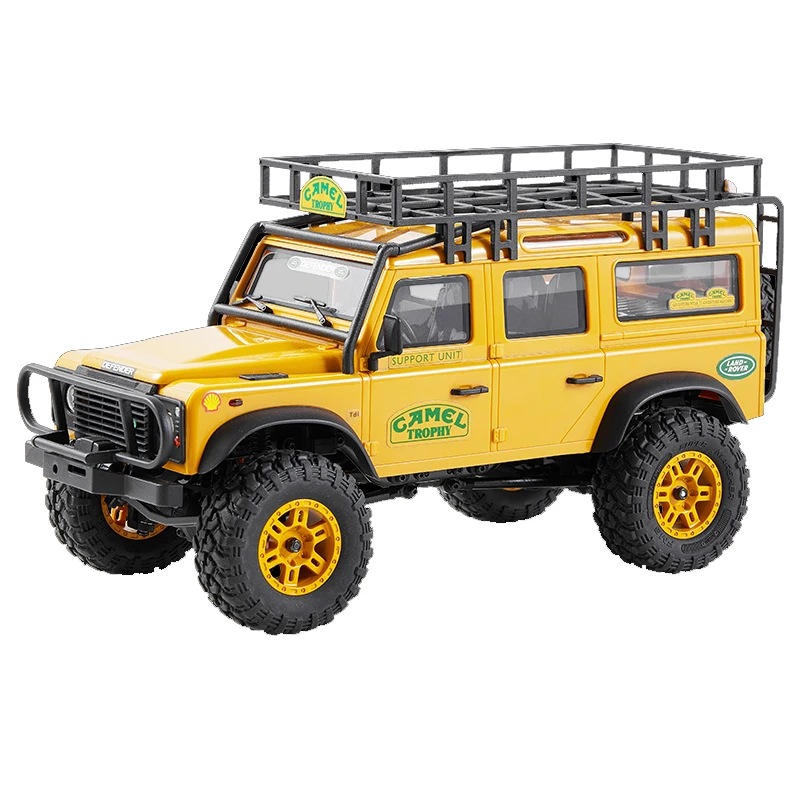

FMS new FCX24M 1/24 RC Land Rover series four-wheel drive electric remote control climbing off-road vehicle adult boy toy

Descrizione

Frequently asked questions:

Q：How to place a remote control car when it is not in use for a long time?

A：1、If it is not in use for a long time, unplug and take off the battery to prevent battery leakage.

2、Do not open, disassemble, or attempt to repair the battery.

3、The battery needs to be disconnected from vehicle before it can be charged

4、Do not charge battery in vehicle.



Q：Battery Precautions

A：• Never charge a lithium polymer battery with a charger designed for Nicd, NIMH, or any other type of battery chemis-try. Use ONLY charger designed for LiPo battery.

• Do not leave LiPo battery unattended during charging.

• Do not overcharge the battery.

• Always charge LiPo batteries on non-flammable, heat-resistant surfaces.

• Always use a LiPo-safe bag or container while charging. Do not allow LiPo cells to overheat at any time. Cells which reach greater than 140 Fahrenheit(60℃) will usually become damaged and will catch fire.

• Do not charge the LiPo pack while it is still in the model. Never charge or store battery packs in a vehicle.

• Do not discharge LiPo, doing so will damage the battery.

• Do not expose LiPo cell to water or moisture at any time.

• Do not store battery near open flame or heater.

• Do not assemble LiPo cells or pre-assembled packs together with other LiPo cells or packs.

• Always store LiPo battery in a secure location away from children.

• Always remove the LiPo battery if model is involved in any kind of crash.

• Carefully inspect the battery and connectors for even the smallest damage.

• CAUTION: Cells may become hot after usage. Allow the pack to cool to room temperature prior to recharging.

• Do not allow the electrolyte to get into eyes or on skin. Wash affected areas immediately if they come into contact with electrolyte.

• Do not alter or modify connectors or wires of a LiPo battery pack.

• Always inspect the condition of the battery before charging and operating.

• Do not short circuit the LiPo battery.

• Do not have contact with a leaky/damaged battery directly.

• Do not charge battery out of recommended temperature range(0℃-45℃).

Q：Safety Precautions

A：• Interference may cause loss of control. To ensure the safety of you and others, do not operate in the following places:

1、Near any site where other radio control activity may occur

2、Near power lines or communication broadcasting antennas

3、Near people or roads

4、On any body of water when passenger boats are present

• Do not use this product when you are tired, uncomfortable, or under the influence of alcohol or drugs. Doing so may cause serious injury to yourself or others.

• The 2.4GHz radio band is limited to line of sight. Always keep your model in sight as a large object can block the RF signal and lead to loss of control.

• Do not touch any part of the model that may generate heat during operation, or immediately after use. The engine, motor or speed control, may be very hot and can ause serious burns.



Q：Installing Transmitter Battery

A：Remote control battery Type:4*AAA Battery (not included)

Follow the steps below to install the batteries:

1. Open the battery compartment cover.

2. Insert 4*AAA batteries with the correct polarity. Make sure it is connected with the correct polarity to avoid damage.

3. Replace battery compartment cover.

Low battery alarm: When the battery is lower than 4.2V, the transmitter will give a alarm with the LED flashing slowly.

Q：Switch Operation Guide

A：Follow the steps below to turn on the transmitter:

1. Check to make sure that the batteries are fully charged and installed correctly.

2. Toggle the Power Switch to the [ON] position, and the LED will be solid on.

3. Connect the receiver to power.

Note: For safety always power on the transmitter before the receiver.

Follow the steps below to turn off the system:

1. Disconnect the receiver power.

2. Toggle the transmitter's Power Switch to the OFF position.

Q：The LED Status of the Transmitter

A：The LED status indicates the power supply state of the transmitter and its working state.

Off: The transmitter is not powered on.

Fast flashing: The transmitter is in the bind mode.

Slow flashing: Low voltage alarm.

Gradual: The transmitter is in Sleep mode or in Idle alarm state.

Three-flash-one-off: The transmitter is in standby state, while the bound receiver is powered off, unbound, or nosignal.

Q：Stick Calibration

A：This function is used to set the neutral position for throttle trigger and steering wheel.

Every transmitter is calibrated before leaving the factory, however if recalibration is required, please follow these steps:

1. Turn and hold the wheel clockwise to the max travel point and push the throttle forwards as far as possible, then turn on the transmitter. It will enter calibration mode. The buzzer sounds shortly in cycle for prompt.

2. Turn the steering wheel to max and min travel point in clockwise and counterclockwise. Then push/pull the trigger to forward/backward as far as it will go. The wheel and trigger go back to the neutral position. Once calibration is fininshed by press the bind key to save and exit.

• If the calibration is completed successfully, the transmitter will exit calibration mode by pressing BIND button,meanwhile the buzzer will prompt with one short beep, and afterwards, the transmitter is in standby mode with the LED in three-flash-one-off state.

• If the calibration is failure, the transimitter can not exit the calibration mode by pressing BIND button.
